BM-13 Katyusha

The Katyusha grew from Soviet work on solid-propellant rockets that began long before the German invasion. The Gas Dynamics Laboratory and, from 1933, the Reactive Scientific Research Institute developed the RS-82 and RS-132 rockets first used from aircraft. Engineers then adapted the larger weapon for ground fire, replacing the need for a gun barrel with a simple rail and accepting lower accuracy in return for a sudden concentration of explosive over a wide target area.

The resulting M-13 rocket and truck-mounted BM-13 launcher were approved for urgent production on 21 June 1941, one day before Operation Barbarossa. Serial manufacture began at the Komintern Plant in Voronezh on 26 June, then spread to other factories as Soviet industry evacuated east. “BM” meant boyevaya mashina, or combat vehicle; “13” referred to the rocket’s nominal calibre in centimetres. The troops called it something else: the nickname is usually traced to the letter K that the Voronezh Komintern plant stamped on the launchers it built.

The standard BM-13-16 carried sixteen 132 mm M-13 rockets on eight double launch rails. Each rocket weighed about 42.5 kg, contained roughly 4.9 kg of TNT and could reach 8,470 m. An electrical firing system launched the full load sequentially in only 7–10 seconds. One vehicle therefore sent about 680 kg of rockets toward the target before a conventional gun battery could complete more than a fraction of its firing programme.

This was an area weapon, not a precision one. Early M-13 rockets could spread by hundreds of metres at maximum range, and the launcher’s narrow traverse meant the driver often had to point the truck toward the target before the crew made fine adjustments. A reload took roughly 5–10 minutes. The answer was tactical: concentrate many launchers, fire an overwhelming salvo, lower the rails and leave immediately before German artillery could locate and engage the firing position.

The first experimental battery went to the Western Front under Captain Ivan Flerov. It had only seven BM-13 launchers. At 15:15 on 14 July 1941, near Orsha, all seven fired together at the railway station: 112 rockets in the weapon’s first operational salvo. Soviet official accounts describe troops, vehicles and supply trains concentrated around the target. Their more extravagant damage claims cannot be independently measured, but the appearance of a wholly new mass-fire weapon during the catastrophe of 1941 was real.

Flerov’s battery continued fighting around Rudnya, Smolensk and Yelnya while the Soviet command rushed more rocket units into service. During the Vyazma encirclement it was trapped behind German lines. On the night of 6–7 October 1941, the surviving crews destroyed their secret launchers rather than let them be captured; Flerov was killed. The battery became part of Soviet wartime legend, but its fate also showed the launcher’s vulnerability: it depended on movement, concealment and disciplined withdrawal to survive.

The launcher was the weapon; the truck beneath it could change. Early production used the Soviet three-axle ZiS-6, but wartime disruption and the loss of factories forced installations onto ZiS-5 trucks, STZ-5 artillery tractors and several imported chassis. This variety kept rocket units fighting, yet it complicated maintenance and changed the launcher’s height, stability and cross-country performance. A “Katyusha” photograph therefore cannot be assigned to a chassis merely from the BM-13 name.

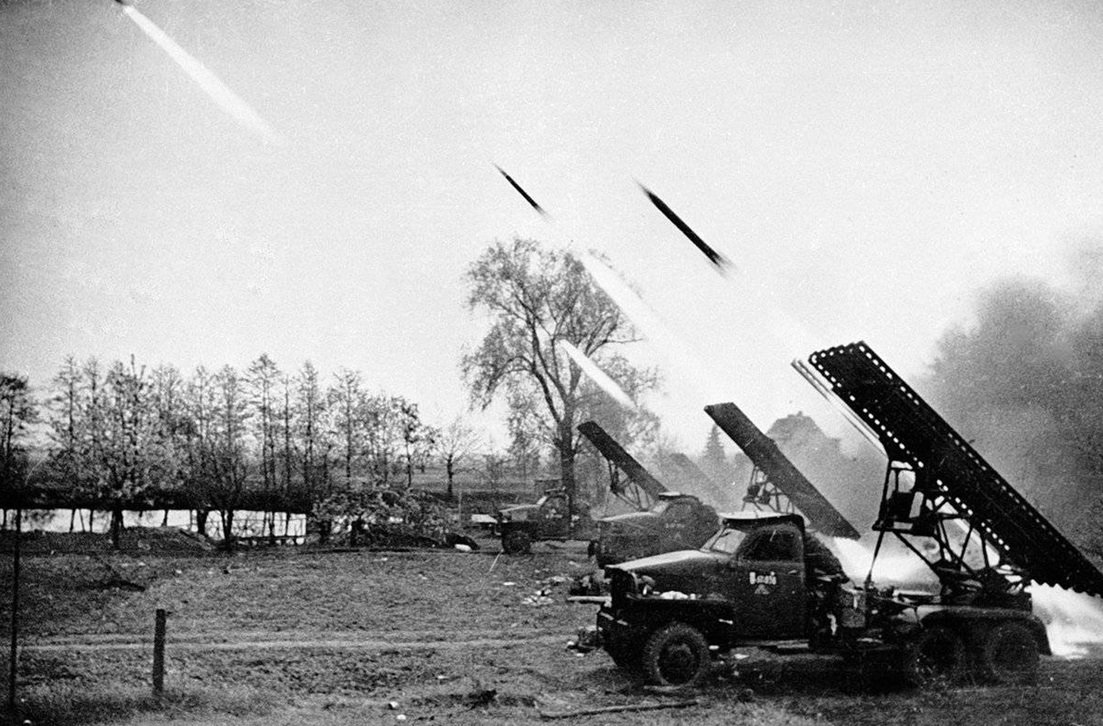

The decisive platform became the American Studebaker US6 supplied through Lend-Lease. Its reliable 6×6 drive, payload and standard dimensions allowed the Soviet design bureau to introduce the normalized BM-13N in 1943. The Studebaker-mounted launcher seen in many late-war photographs could follow operational advances, use poor roads and move quickly after firing. It was a striking example of Soviet weapon design and American automotive production combining in the same combat system.

For security, the Red Army initially described rocket formations as Guards mortar units, although their weapons were neither conventional mortars nor reserved only for veteran Guards formations. Batteries grew into battalions, regiments, brigades and eventually divisions controlled at high command level. By the end of the war Soviet rocket artillery comprised 519 battalions of different types. Commanders could mass them at a breakthrough sector, then redistribute them as the main effort moved.

Their best targets were exposed infantry, vehicle parks, railway facilities, assembly areas and defensive positions immediately before an assault. The rockets’ blast, fragmentation and distinctive roar produced a psychological effect out of proportion to the modest 4.9 kg explosive charge in each M-13. Yet the system had limits: poor dispersion made it wasteful against point targets, the unarmoured trucks were vulnerable to aircraft and shellfire, and every dramatic salvo created smoke, dust and sound that advertised the firing position.

Katyusha regiments became part of the Red Army’s standard method of attack. At Kursk, US Army research records rocket salvos opening Soviet fire around Ponyri on 7 July 1943, followed by bombers and Il-2 attack aircraft. The launchers then supported the offensives that carried the front through Ukraine, Belarus, Poland, the Balkans and Hungary. Their mobility mattered as much as their firepower: rocket artillery could move with the operational advance instead of waiting for heavy guns and tractors to catch up.

At 06:00 on 16 April 1945, Katyusha batteries joined the enormous Soviet bombardment across the Oder that opened the final drive on Berlin. They did not accompany T-34s through every street as direct-fire vehicles; their place was behind the assault formations, saturating approach routes and defended areas before the armour and infantry moved.

The origin of “Katyusha” is not settled. The nickname may have referred to the popular 1938 song about a young woman named Katyusha; another explanation connects it to the letter K marked on early launchers from the Komintern Plant. German troops called the weapon Stalinorgel — “Stalin’s Organ” — because the rail frame resembled organ pipes and a salvo produced a rising, howling sound. The names outlived the official designation and were eventually applied loosely to several Soviet rocket systems.

From July 1941 through December 1944 Soviet industry completed 6,844 BM-13 launchers, within a total of 10,114 self-propelled launchers of the BM-8, BM-13 and BM-31 families. Those figures must not be collapsed into a single BM-13 production number. The Katyusha’s real legacy was the method: cheap launch rails, mobile carriers and massed rockets delivering fire faster than tube artillery could match. Post-war systems culminated in the BM-21 Grad, but the principle — strike a wide area, then move — was already complete in 1941.
